flat plate compact solar water heater 4, flat plate water heater

    Buy cheap flat plate compact solar water heater 4, flat plate water heater from wholesalers

    Buy cheap flat plate compact solar water heater 4, flat plate water heater from wholesalers
    • Buy cheap flat plate compact solar water heater 4, flat plate water heater from wholesalers
    • Buy cheap flat plate compact solar water heater 4, flat plate water heater from wholesalers

    flat plate compact solar water heater 4, flat plate water heater

    Ask Lasest Price
    Brand Name : SolarShine/OEM/ODM
    Model Number : TH150-320L
    Certification : GB
    Supply Ability : 300 SETS per month
    • Product Details
    • Company Profile

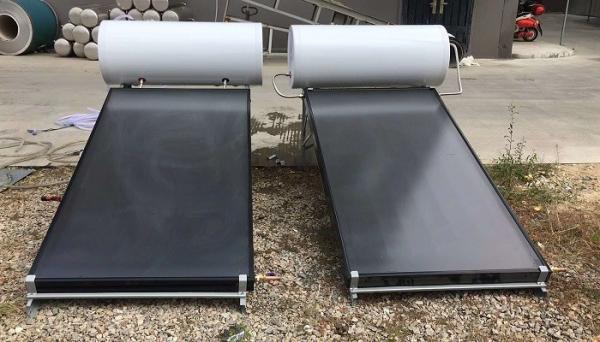

    flat plate compact solar water heater 4, flat plate water heater

    flat plate compact solar water heater 4, flat plate water heater

    PRODUCT INTRODUCTIONS:

    SolarShine thermosyphon solar heating systems based on flat plate solar collector provide a simple way to get hot water from the sun.A normal-working system requires neither pump nor temperature- differential-control, the systems are very easy installation, simple and low cost maintenance.

    All systems equipped with high- efficiency solar collectors, pressurized water tanks, and accessories pack for easy installation.


    Features:

    - System Volume available: /150L / 250L / 300L.
    - Both of Inner and outer cover of tank is made of SUS304 high-grade stainless steel.
    - Strong mounting frame for flat roof or pitch roof mounting.

    - Easy installation and maintenance.

    - Full automatic controller.

    - Automatic start / stop the auxiliary electric heater under preset timing and temperature level.
    - With Back up electric heater, ensure adequate hot water supplying at rainy or cloudy days.


    SPECIFICATION AND PRICE QUOTATION:

    1. ECO Series, suitable for hot climate regions and lower-cost budget.

    PARTModelTH-150-A2.0TH-250-A4.0TH-300-A4.0
    • Storage

    Tank

    Capacity150 Liters250 Liters300 Liters
    Ext. Size(mm)Φ470x 1545Φ560 x 1625Φ560 x 1925
    Inner material

    SUS304 2B

    1.2mm

    SUS304 2B

    1.5mm

    SUS304 2B

    1.5mm

    Tank out cover materialSUS304 2B/1.0mm
    InsulationHigh density polyurethane
    Tank out cover materialSUS304 2B
    2.Solar CollectorCollector Model*A-2.0-78
    Collector Size(mm)2000x1000x78
    Collector quantity1 x 2.0M22 x 2M22 x 2M2
    Total Collector Area2.4M24M24 M2
    3.ControllerYN388Full automatic intelligent system controller * 1ET
    • Mounting bracket
    Stainless steel mounting bracket * 1SET
    • Auxiliary Electric Heater
    1.5KW2KW3KW
    • Fitting and pipe
    Brass fitting / Valve / PEX circulation pipe * 1set
    20 container loading quantity40 Sets30 Sets25 Sets


    Advantage:

    Solar water heating is the conversion of sunlight into heat for water heating using a solar thermal collector,

    Solar water heaters use the solar energy from the sun to generate heat (not electricity).

    The solar water heating solution is used for shower, room heating, hotel, swimming pool etc.
    • Combined with solar heation system, heat pump, electrical heater and other heating source.
    • Use the Sun to Heat Your Water to save your energy costs.
    • Heating element back-up.
    • Optional coils to fast the efficiency of heat transferring.
    • Optional water connections according to customers requests.
    • High dencity polyurethane foam reduces heat loss and energy costs for maximum efficiency.


    Flat Plate Solar Water Heater Features:

    1.U sing patent advanced coating technology with high efficiency performance.

    2. High strength aluminum-alloy structure with surface varnish baking

    3. High visual shape ,easy installation ,maintenance free

    4. Pressurized designing ,operate with pressure up to 1 Mpa

    5. Can be combined with existing energy source

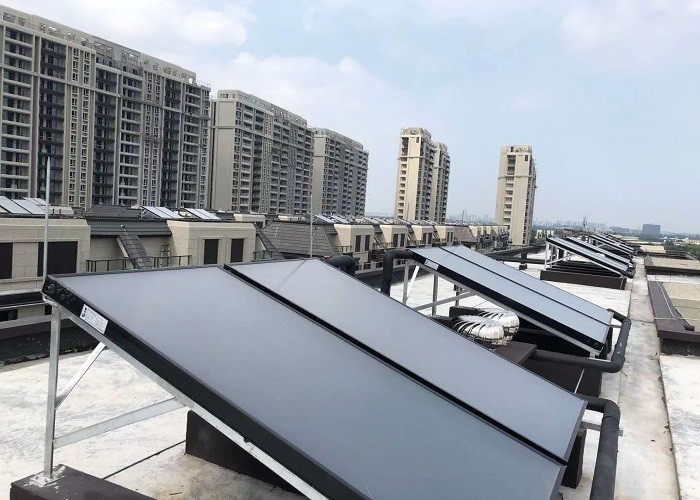

    Successful applications:



    Quality flat plate compact solar water heater 4, flat plate water heater for sale
