    Convenient Solar Powered Hot Water Heater Vacuum Absorber Tubes For Commercial Use

    Ask Lasest Price
    Brand Name : SolarShine/OEM
    Model Number : ECO/PLUS
    Certification : CE
    • Product Details
    • Company Profile

    Convenient Solar Powered Hot Water Heater Vacuum Absorber Tubes For Commercial Use

    Product Features


    All in one design, easy installation, save space.

    Safety, the electricity is completely separated from water, without any poisonous gas, liquid or trash letting while running.
    Save energy , saving more energy by 70% comparing with ordinary water heater.
    Protecting Environment. There isn't any burning gas from the water heater. The refrigerant won't contaminate the ozonosphere. So it benefits the society.
    Supply water anytime, and not be affected by geographical and weather changing.
    Intelligent control, the water temperature can be adjusted as needed and controlled by micro-computer automatically.

    Separate water system and electricity,reliability and safety.


    Eco evacuated tube non-pressurized solar water heater is design for very high cost-effective application.
    PLUS+ Series is design for very high-class application, with larger water tank volume+ alum mounting frame,and thicker insulation layer.


    1. Super anti-corrosive outer tank: Outer tank is made by SUS304 2B stainless steel. Suitable for the seaside area,such as East South Asia.

    2. Strong inner tank with stainless steel up to 0.41mm.

    3. High efficiency vacuum absorber tubes.

    4. Equip with intelligent automatic system controller and back-up electric heater.


    SPECIFICATION DATA
    SERIESECO Series
    MODELECO-155L-20TECO-185L-24TECO-230L-30TECO-275L-36T
    Volume155L185L230L275L
    Vacuum tube quantity20PCS24PCS30PCS36PCS
    Solar vacuum tubeø58 x 1800mm/ high efficiency solar evacuated Tube,
    Inner tank materialSUS304 2B food-grade stainless steel / wall thickness =0.41mm
    Outer tank materialSUS304 2B food-grade stainless steel / wall thickness =0.31mm
    Water Tank ext sizeø450x1625mmø450x1925mmø450x2375mmø450x2825mm
    Water tank inner sizeø360x1525mmø360x1825mmø360x2225mmø360x2725mm
    Insulation / thicknessHigh-density polyurethane foaming/45mm
    Frame material201# Stainless steel frame/ 30 x 60mm / 38o mounting degree
    Intelligent controllerFull Automatic system controller
    Electric heater1.5KW1.5KW2KW2KW
    SERIESPLUS+ SERIES
    MODELPLUS-173L-20TPLUS-205L-24TPLUS-260L-30TPLUS-310L-36T
    Volume173L205L260L310L
    Vacuum tube quantity20PCS24PCS30PCS36PCS
    Solar vacuum tubeø58 x 1800mm/ high efficiency solar evacuated Tube,
    Inner tank materialSUS304 2B food-grade stainless steel / wall thickness =0.41mm
    Outer tank materialSUS304 2B food-grade stainless steel / wall thickness =0.31mm
    Water Tank ext sizeø5000x1625mmø500x1925mmø500x2375mmø500x2825mm
    Water tank inner sizeø380x1525mmø380x1825mmø380x2225mmø380x2725mm
    Insulation / thicknessHigh-density polyurethane foaming/60mm
    Frame materialAluminum alloy / 100CM width / 38o mounting degree
    Intelligent controllerFull Automatic system controller
    Electric heater1.5KW2KW2KW2KW

    Convenient Solar Powered Hot Water Heater Vacuum Absorber Tubes For Commercial Use

    Convenient Solar Powered Hot Water Heater Vacuum Absorber Tubes For Commercial Use

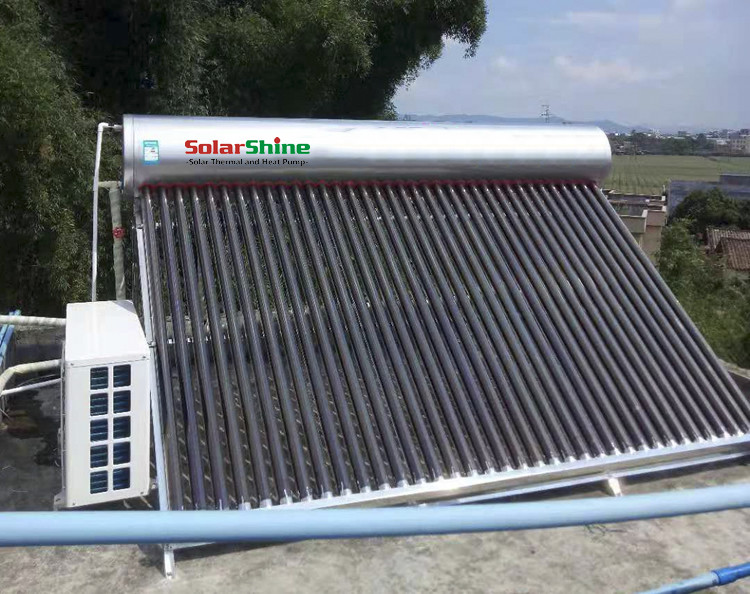

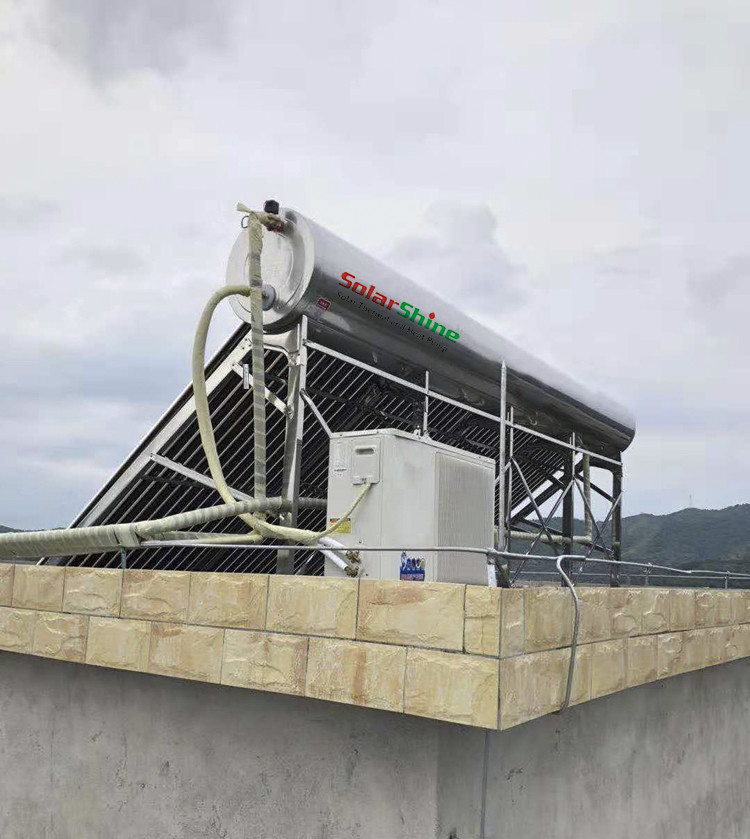

    SUCCESSFUL APPLICATIONS:

    Convenient Solar Powered Hot Water Heater Vacuum Absorber Tubes For Commercial UseConvenient Solar Powered Hot Water Heater Vacuum Absorber Tubes For Commercial Use
