Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

hot sales black chrome solar thermal collector panel for solar hot water heating system and house small water heater

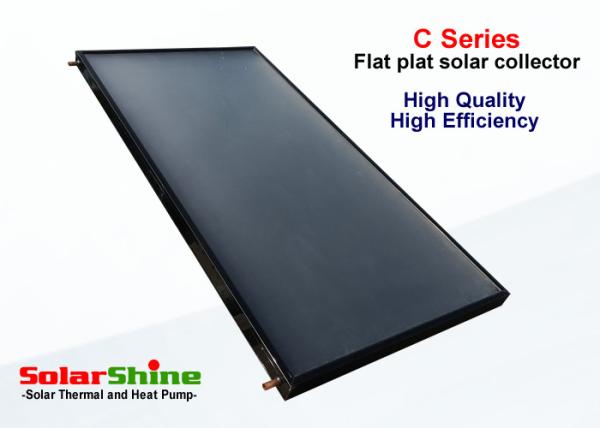

SOLARSHINE C-series flat plate solar collector is special designed for high grade residential solar water heating systems, this solar collector is also suitable to be installed in any climate regions.


The collector is elegant-design with firm structure and manufactured by top quality materials.


We offer 4 models with different cost budget, (78mm and 85mm frame) and collector area (2.0M2 and 2.4M2) collector area, customers can chose the most suitable model accordingly.

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector


Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar CollectorBlack Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

SERIESC-Series
Model NumberC-2.0-78
Ext. Dimension(mm)2000 x 1000 x 78
Gross / Aperture area2.0 / 1.83 (M2)
Absorber CoatingSelective black chrome coating
Optical Performance
of absorber coating
Absorption: >95% Emission: <8%
Efficiency coefficients
(Based on Aperture Area)
ŋa = 0.77 - 5.4Tm*
Absorber MaterialAll in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tubeCopper TP2- L1886 x Ø10 x δ0.5mm
Riser quantity7PCS
Header ManifoldØ22 / L1060 /δ0.6mm
Fluid Capacity1.6L
Frame Casing/
Wall Thickness
Aluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity
25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k
Back Sheetδ0.4mm aluminium plate
Glass Cover

3.2mm tempered, low-iron patterned solar glass,

transitivity >/= 92%

Sealing ProfileEPDM rubber stripe
Tested/Rated pressure1.2Mpa/0.6Mpa
Net. Weight (empty)31.5kg
Container Loading Qty
(20GP/40GP/40HQ)
165 / 340 / 360(PCS)
