Professional Flat Plate Solar Collector Highly Selective Vacuum Coating

Professional manufacturer of flat plate solar thermal collector and solar water heater


This flat plate solar thermal collector, designed for large central solar water heating projects and residential solar water heater in warm-climate regions, and the regions with sufficient solar radiation, such as South East Asia, Africa, south of China, etc.

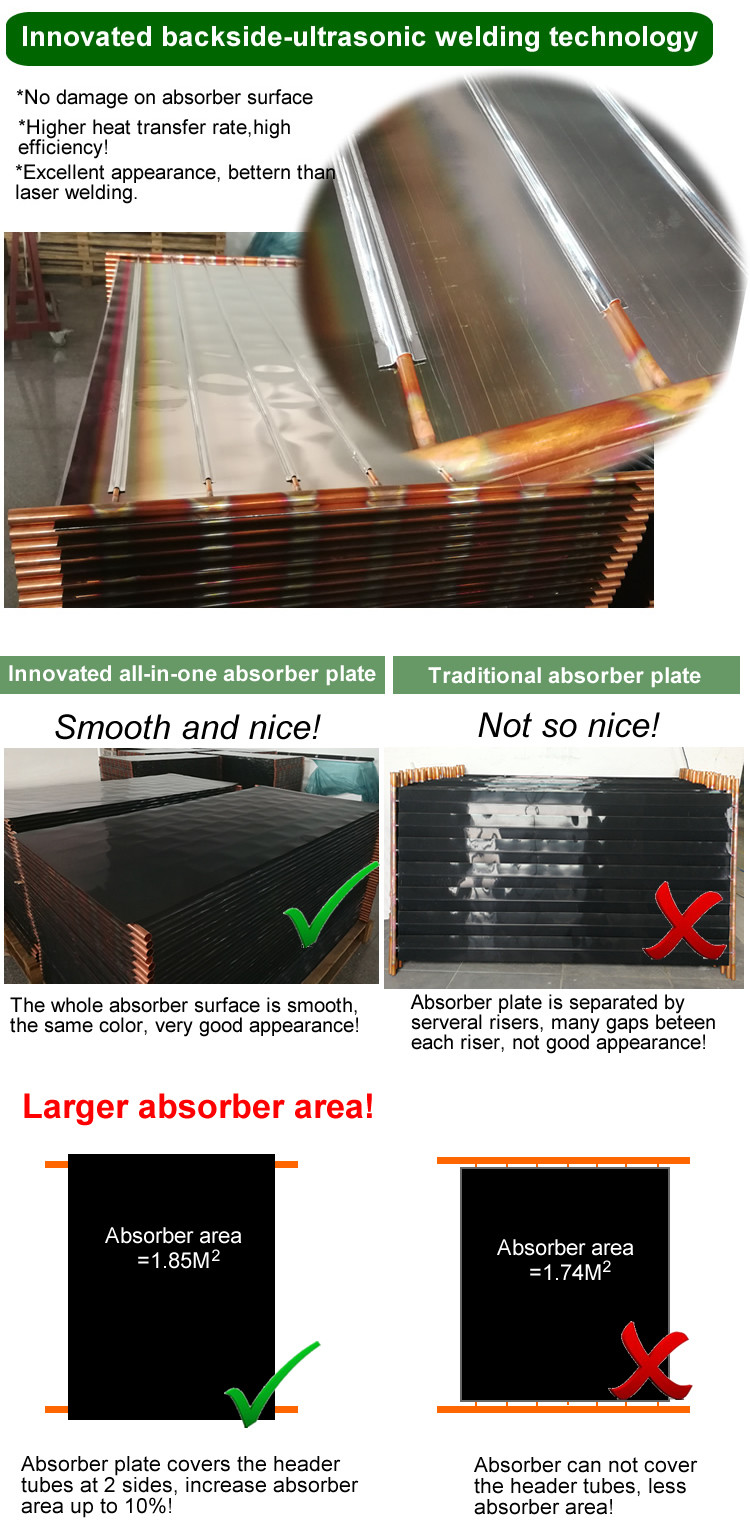

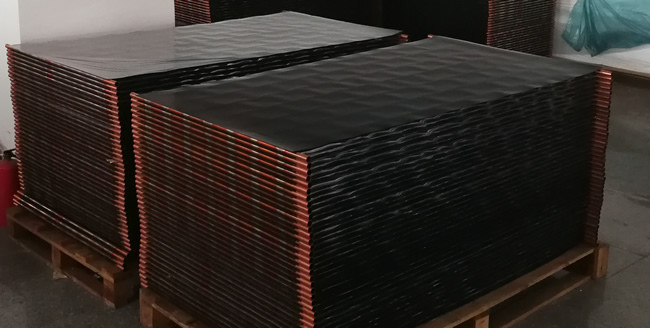

This model collector is a cost-effective model for any solar water heating system, apply with innovated all-in-one absorber plate+ backside ultrasonic welding technology. The absorber is selective black oxidation coating.


SERIES TYPEA - Series solar collector
ModelA-2.0-78
Ext. Dimension2000 x 1000 x 78MM
Gross Area / Aperture area2.0 / 1.83 (M2)
Absorber CoatingSelective anodize oxidation coating
Absorber optical dataAbsorption: >95% Emission: <16%
Efficiency coefficients
(Based on Aperture Area)
ŋa = 0.75 - 5.4Tm* (Tm-Ta)/G (M2.K/W)
Absorber MaterialAll in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tubeCopper TP2- L1886 x Ø10 x δ0.5mm
Riser tubes quantity7 PCS
Header tubeØ22 / L1060 /δ0.6mm
Inside Fluid Capacity1.6L
Frame and Wall ThicknessAluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity
25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k

Back Sheet

(Optional)

δ0.4mm galvanized plate/aluminum plate
Glass Cover

Low iron 3.2mm tempered, solar glass,

transitivity >/= 92%/ high efficiency

Sealing ProfileEPDM rubber
Tested/Rated pressure1.2Mpa/0.6Mpa
Net. Weight (empty)31.5kg
Container Loading Qty
(20GP/40GP/40HQ)
165 / 340 / 360(PCS)
