Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color

flat plate solar collector panel for solar thermal powered water heater


A-Series flat plate solar thermal collector is a cost-effective model for any solar water heating system, apply with innovated all-in-one absorber plate+ backside ultrasonic welding technology. The absorber is selective black oxidation coating. A-Series flat plate solar collector is design for large central solar water heating projects and residential solar water heater in warm-climate regions, and the regions with sufficient solar radiation, such as South East Asia, Africa, south of China, etc.

Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color

Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color


Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color

Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color


SERIESA - Series solar collector
Model NumberA-2.0-78
Ext. Dimension2000 x 1000 x 78MM
Gross / Aperture area2.0 / 1.83 (M2)
Absorber CoatingSelective anodize oxidation coating
Optical Performance
of absorber coating
Absorption: >95% Emission: <16%

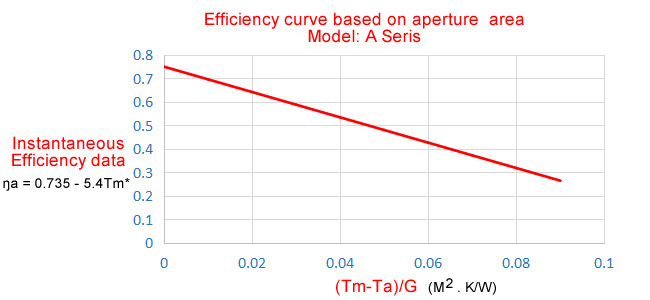

Efficiency coefficients
(Based on Aperture Area)
ŋa = 0.75 - 5.4Tm*

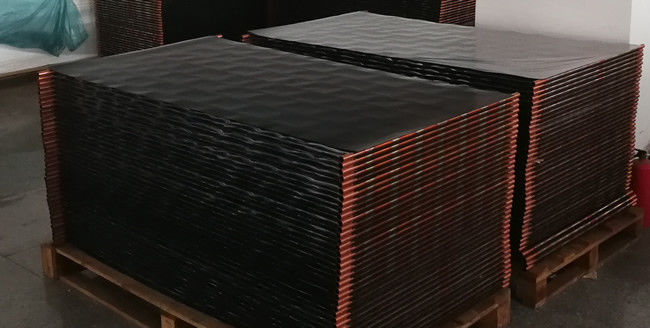

Absorber MaterialAll in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tubeCopper TP2- L1886 x Ø10 x δ0.5mm
Riser tubes quantity7PCS
HeaderØ22 / L1060 /δ0.6mm
Inside Fluid Capacity1.6L
Frame and Wall ThicknessAluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity
25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k

Back Sheet

(Optional)

δ0.4mm galvanized plate/aluminum plate
Glass Cover

3.2mm tempered, low-iron patterned solar glass,

transitivity >/= 92%

Sealing ProfileEPDM
Tested/Rated pressure1.2Mpa/0.6Mpa
Net. Weight (empty)31.5kg
Container Loading Qty
(20GP/40GP/40HQ)
165 / 340 / 360(PCS)
