    Intelligent Controller All In One Heat Pump Water Heater Low Noise Fan

    SolarShine Air Source Heat Pump Water Heater for residential applications


    Airsource heat pump water is a green energy product, which is based on Inverse Carnot Principle, it is powered by compressor with about 25% energy consumption , and obtains other 75% heat energy from the air from the process of refrigrant evaporation, so its working efficiecny can maximum reach more than 400%, saving 70% energy consumption comparing with traditional electric heater.

    This product is very suitable for warm climate regions such as south-east Asia, South of China, mid east, etc.


    Features:

    *Economical and high-efficiency: Save average 70% heating cost than electric heaters.

    *Water Circulation: Easy installation and acquaintance

    *Quiet Running: High-efficiency, low noise rotary compressor, low noise fan, the main unit works at extremely quiet condition.

    *Intelligent: Full automatic and intelligent controller, no need any manual operation.


    Specification details
    Product typeRefrigerant direct circulation type type air source heat pump water heater (Pressurized)
    MODELF-150L-1.0HPF-200L-1.5HP-BF-250L-1.5HP+F-300L-1.5HP+F-400L-2HPF-500L-2HP
    Suitable for family3-4 persons4-5 persons5-6persons6-7 persons7-8 persons8-10 persons
    Loading quantity/20’ container40 Sets37 Sets33 Sets30 Sets24 Sets22 Sets
    Water
    Tank
    Water Tank Volume150 Liters200 Liters250 Lit res300 Lit res400 Lit res500 Lit res
    Water Tank Size(MM)Φ470*1545Φ520*1545Φ560*1625Φ560*1915Φ700*1625Φ700*1915
    Water Tank outer coverWhite color anti-rust painting
    Water Tank inner cylinder
    and wall thickness
    SUS304/1.0mmSUS304/1.2mmSUS304/1.5mmSUS304/1.5mmSUS304/1.8mmSUS304/1.8mm
    Heat Exchanger316L stainless steel coil heat ex-changer / Dia. 9.52mm
    Length of coil heat exchanger25 meters25 meters30 meters30 meters40 meters40 meters
    Insulation50mm high density polyurethane
    Rated Working Pressure0.6Mpa
    Heat
    Pump
    Main
    Unit
    Main unit power (HP)1.5HP (Standard version)1.5HP (Plus version)2Hp
    Power consumption0.9KW1.22KW1.27KW1.27KW1.8KW1.8KW
    Nominal Heating capacity3.5KW4.9KW5.2KW5.2KW7KW7KW
    Fluid pressure reduce
    and adjustment device
    Electronic Expansion Valve
    Ext. Dimension(mm)780 X 255 X 535
    Power SupplyAC220V/50hz
    RefrigerantR417A(new environmental refrigerant)

    Intelligent Controller All In One Heat Pump Water Heater Low Noise Fan


    Intelligent Controller All In One Heat Pump Water Heater Low Noise Fan


    Intelligent Controller All In One Heat Pump Water Heater Low Noise Fan

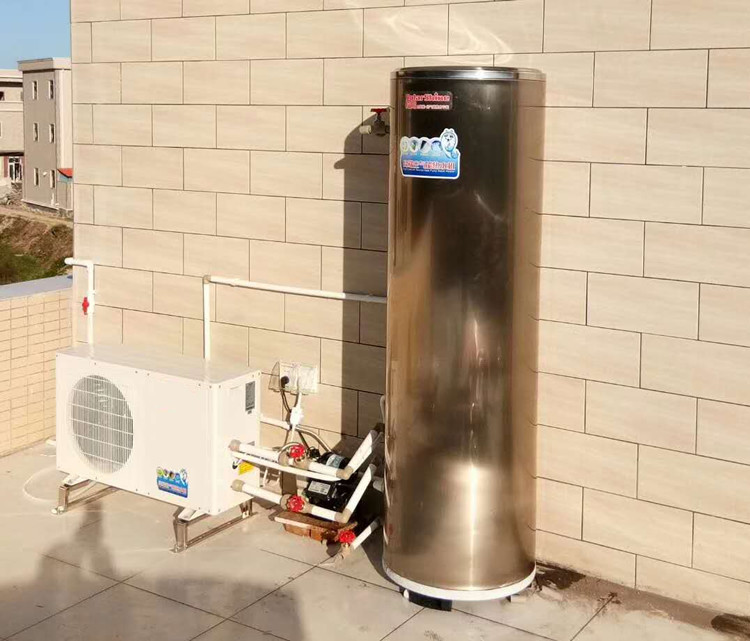

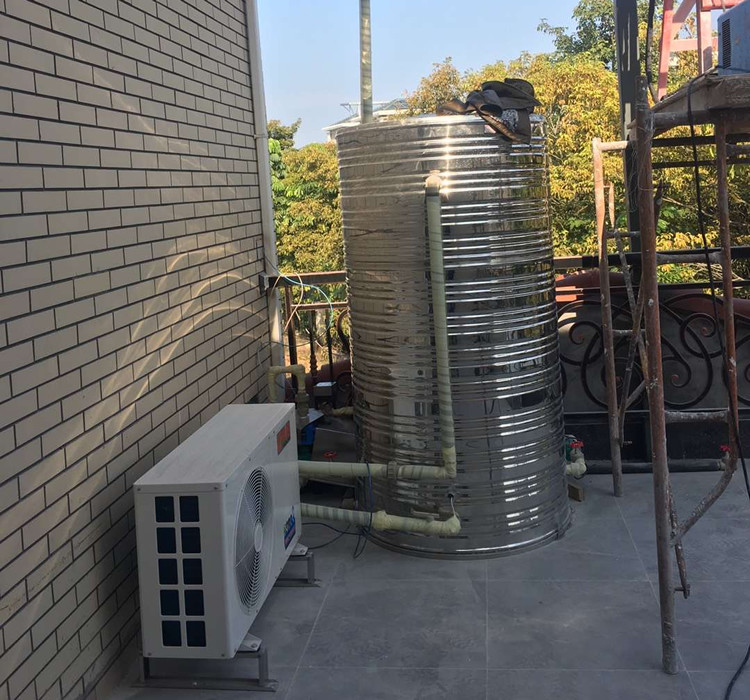

    Successful Applications:

    Intelligent Controller All In One Heat Pump Water Heater Low Noise FanIntelligent Controller All In One Heat Pump Water Heater Low Noise Fan
