All in one design, easy installation, save space.
Safety, the electricity is completely separated from water, without
any poisonous gas, liquid or trash letting while running.
Save energy , saving more energy by 70% comparing with ordinary
water heater.
Protecting Environment. There isn't any burning gas from the water
heater. The refrigerant won't contaminate the ozonosphere. So it
benefits the society.
Supply water anytime, and not be affected by geographical and
weather changing.
Intelligent control, the water temperature can be adjusted as
needed and controlled by micro-computer automatically.
Separate water system and electricity,reliability and safety.
Air source heat pump water is a green energy product, which is
based on Inverse Carnot Principle, it is powered by compressor with about 25% energy consumption ,
and obtains other 75% heat energy from the air from the process of
refrigrant evaporation, so its working efficiecny can maximum reach
more than 400%, saving 70% energy consumption comparing with
traditional electric heater.
This product is very suitable for warm climate regions such as
south-east Asia, South of China, mid east, etc.
Features:
*Economical and high-efficiency: Save average 70% heating cost than electric heaters.
*Water Circulation: Easy installation and acquaintance
*Quiet Running: High-efficiency, low noise rotary compressor, low noise fan, the
main unit works at extremely quiet condition.
*Intelligent: Full automatic and intelligent controller, no need any manual
operation.
| Specification details and price quotation |
| Product type | Water circulation type air source heat pump water heater
(Pressurized) |
| MODEL | S-150L-1HP | S-200L-1HP | S-250L-1.5HP | S-300L-1.5HP | S-400L-2HP | S-500L-2HP |
Water
Tank | Water Tank Volume | 150 Liters | 200 Liters | 250 Lit res | 300 Lit res | 400 Lit res | 500 Lit res |
| Water Tank Size(MM) | Φ470*1545 | Φ520*1545 | Φ560*1625 | Φ560*1915 | Φ700*1625 | Φ700*1915 |
| Water Tank outer cover | Colorful shining steel(with anti-corrosive surface treatment, white
/ golden / Silver available) |
Water Tank inner cylinder
and wall thickness | SUS304/1.0mm | SUS304/1.2mm | SUS304/1.5mm | SUS304/1.5mm | SUS304/1.5mm | SUS304/1.5mm |
| Heat Exchanger | N/A |
| Insulation | 50mm high density polyurethane |
| Rated Working Pressure | 0.6Mpa |
Heat
Pump
Main
Unit | Main unit power (HP) | 1Hp | 1Hp | 1.5Hp | 1.5Hp | 2Hp | 2Hp |
| Power consumption | 1KW | 1KW | 1.32KW | 1.32KW | 1.32KW | 1.67KW |
| Nominal Heating capacity | 3.5KW | 3.5KW | 4.73KW | 4.73KW | 4.73KW | 6.5KW |
Fluid pressure reduce
and adjustment device | Electronic Expansion Valve |
| Ext. Dimension(mm) | 756 x 260 x 450 | 920 x 280 x 490 |
| Power Supply | AC220V/50hz |
| Refrigerant | R410A/R407C (new environmental refrigerant) |
20’container loading quantity | 60 sets | 40 sets | 38 sets | 32 sets | 25 sets | 20 sets |
Remarks: 1. Above prices are based on FOB + minimum order quantity
of 1x20GP full container, final price will be modified if order
quantity changed more or less.
2. Since USD exchange rate changes often, final price maybe
modified according to actual exchange rate of the order
confirmation date. |

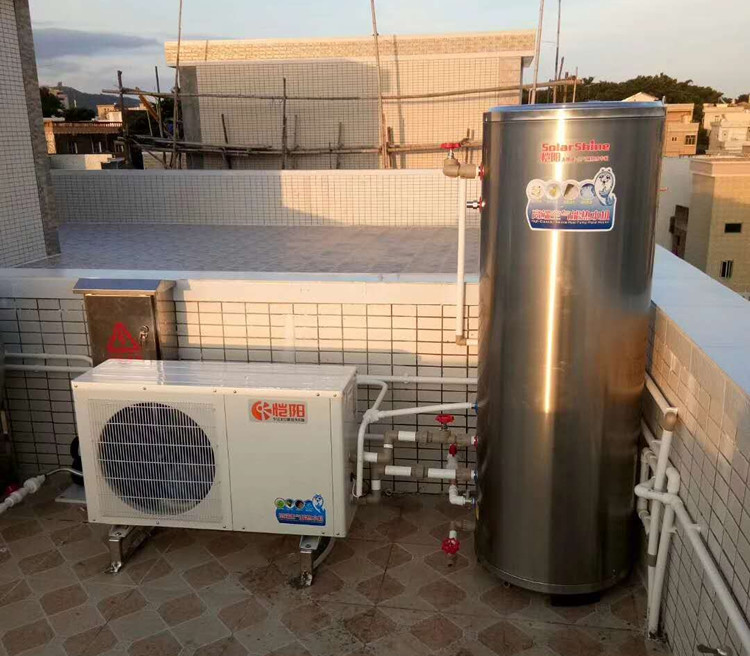

Successful Applications:
