SOLAR + HEAT PUMP HYBRID WATER HEATING SYSTEM
(Vacuum Tubes Non-pressurized Type)
Quick detail:
Long lifespan
Low operating cost
less emissions than an oil boiler
Designed and built especially for FAMILY sanitary hot water
Suitable for hot water in operation throughout the year
Adopt Titanium / Copper heat exchanger, effectively erosion proof
and durable.
Reliable Coepland scroll compressor with R410A/407C refrigerant.
Base frame and the cabinet made of Galvanized powder coated steel
or stainless steel optional.
Excellent outlook design wins high appreciation
The most effective and safe water heating system...
Get free hot water in sunny days.
Use heat pump in rainy days, save 75% heating cost....
The most effective and safe water heating system...
Product introductions:
Solar thermal + heat pump water heating system offer the most
effective way of water heating, as in rainy or cloudy days,
traditional solar water heater can not produce enough hot water by
the sun and must need to use electric heater to heat the water, as
we all know what electric heater’s efficiency is maximum 90%, if we
need enough hot water in rainy days, electric heater will waste too
much electric power and it is not safety to use electric heater.
For the air source heat pump, its efficiency can reach 400% so it
is an green energy source, and it is very safety, now we use heat
pump replace to electric heater to make SOLAR THERMAL+HEAT PUPM
HYBRID SYSTEM, this new type of water heater can save 75% heating
cost in rainy or cloudy days than electric heater.
SPECIFICATION DATA
| SERIES | ECO Series |
| MODEL | HY-V-ECO-20T-1 | HY-V-ECO-24T-1 | HY-V-ECO-30T-1.5 | HY-V-ECO-36T-1.5 |
| Tank Capacity | 155L | 185L | 230L | 275L |
| Vacuum tube quantity | 20PCS | 24PCS | 30PCS | 36PCS |
| Solar vacuum tube | ø58 x 1800mm/ high efficiency solar evacuated Tube, |
| Inner tank material | SUS304 2B food-grade stainless steel / wall thickness =0.41mm |
| Outer tank material | SUS304 2B food-grade stainless steel / wall thickness =0.31mm |
| Water Tank ext size | ø450x1625mm | ø450x1925mm | ø450x2375mm | ø450x2825mm |
| Insulation / thickness | High-density polyurethane foaming/45mm |
| Frame material | 201# Stainless steel frame/ 30 x 60mm / 38o mounting degree |
| Heat Pump Type | Air source heat pump (Water Pump Circulation Type) |
| Heat pump operate power | 1KW/1Hp | 1KW/1Hp | 1.32KW/1.5Hp | 1.32KW/1.5Hp |
| Heat pump heating power | 3.5KW | 3.5KW | 4.73KW | 4.73KW |
| 20’ container quantity | 30 sets | 27 sets | 23 sets | 21 sets |
| | | | |
| SERIES | PLUS Series |
| MODEL | HY-V-PlUS-20T-1 | HY-V-PLUS-24T-1 | HY-V--PLUS-30T-1.5 | HY-V-PLUS-36T-1.5 |
| Tank Capacity | 173L | 205L | 260L | 310L |
| Vacuum tube quantity | 20PCS | 24PCS | 30PCS | 36PCS |
| Solar vacuum tube | ø58 x 1800mm/ high efficiency solar evacuated Tube, |
| Inner tank material | SUS304 2B food-grade stainless steel / wall thickness =0.41mm |
| Outer tank material | SUS304 2B food-grade stainless steel / wall thickness =0.31mm |
| Water Tank ext size | ø500x1625mm | ø500x1925mm | ø500x2375mm | ø500x2825mm |
| Insulation / thickness | High-density polyurethane foaming/60mm |
| Frame material | Aluminum alloy / 100CM width / 38o mounting degree |
| Heat Pump Type | Air source heat pump (Water Pump Circulation Type) |
| Heat pump operate power | 1KW/1Hp | 1.32KW/1.5Hp | 1.32KW/1.5Hp | 1.32KW/1.5Hp |
| Heat pump heating power | 3.5KW | 4.73KW | 4.73KW | 4.73KW |
| 20’ container quantity | 30 sets | 26 sets | 22 sets | 20 sets |

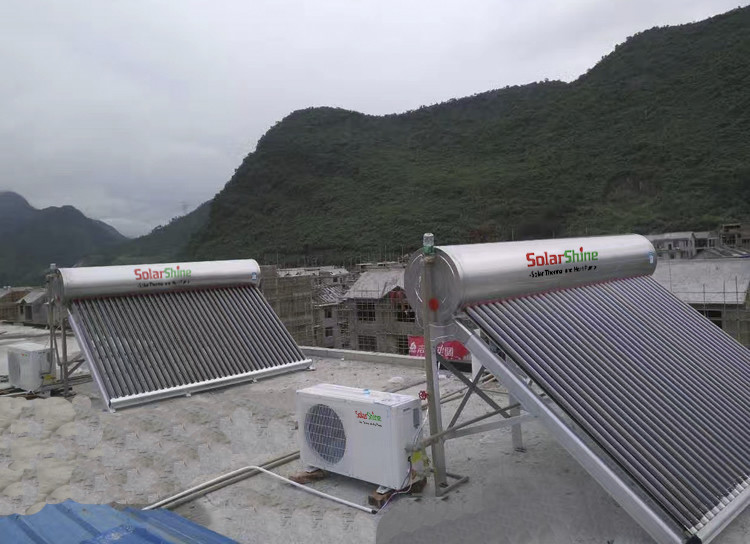

Successful applications:
